Police 4: Toggle switch to 3 connection female spade connectors

Created: 2012 February 20

Updated: 2026 March 26

Applicable to these part numbers:

SH-POL-TS-TOGGLE

The wires are routed from the toggle switch inside the dash down through the holes in the upper triple tree plate. From there, the wires are routed to the 3 connection female spade connectors under the fuel tank in the space provided by the frame. The wires with the individually sheathed ends are located at the toggle switch end.

The white/black wire with the insulated 6.3 mm female spade terminal is connected to the toggle switch. Connect this terminal to the toggle switch terminals in the middle. At the other end of the white/black wire, the non-insulated 6.3 mm female spade terminal is connected to the 3 connection female spade connector for the right turn signal circuit.
The yellow/black wire with the insulated 6.3 mm female spade terminal is connected to the toggle switch. Connect this terminal to the toggle switch terminals in the middle. At the other end of the yellow/black wire, the non-insulated 6.3 mm female spade terminal is connected to the 3 connection female spade connector for the left turn signal circuit.

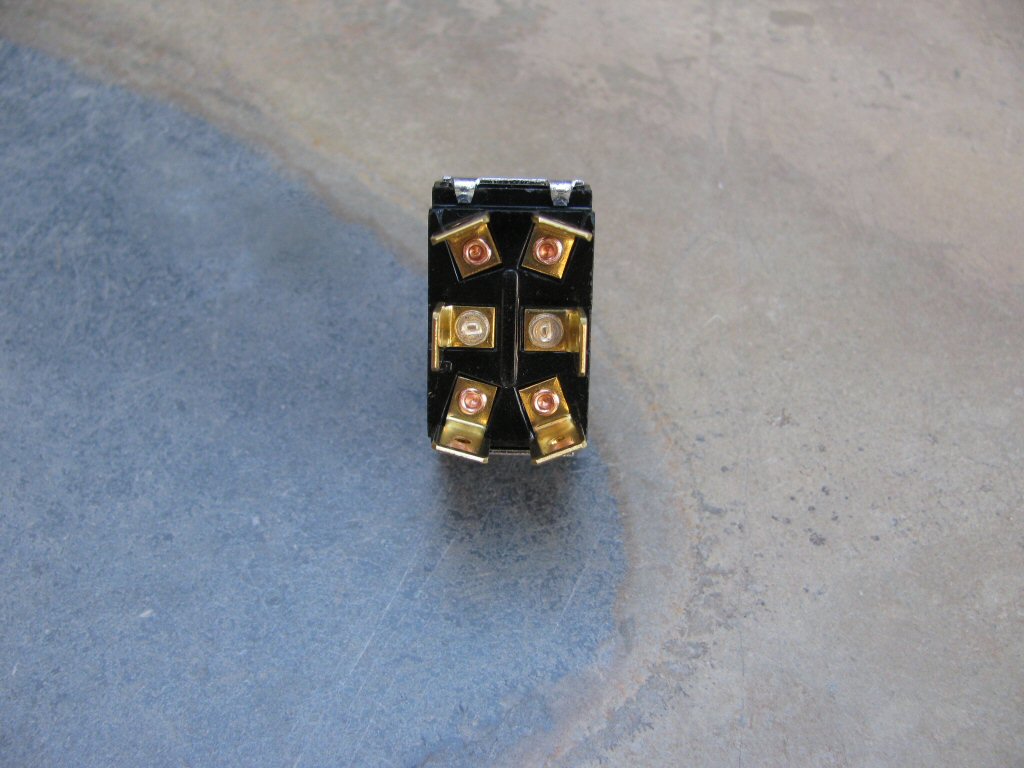

The terminals on the bottom of the toggle switch.
Photo courtesy of Gregory Bender.

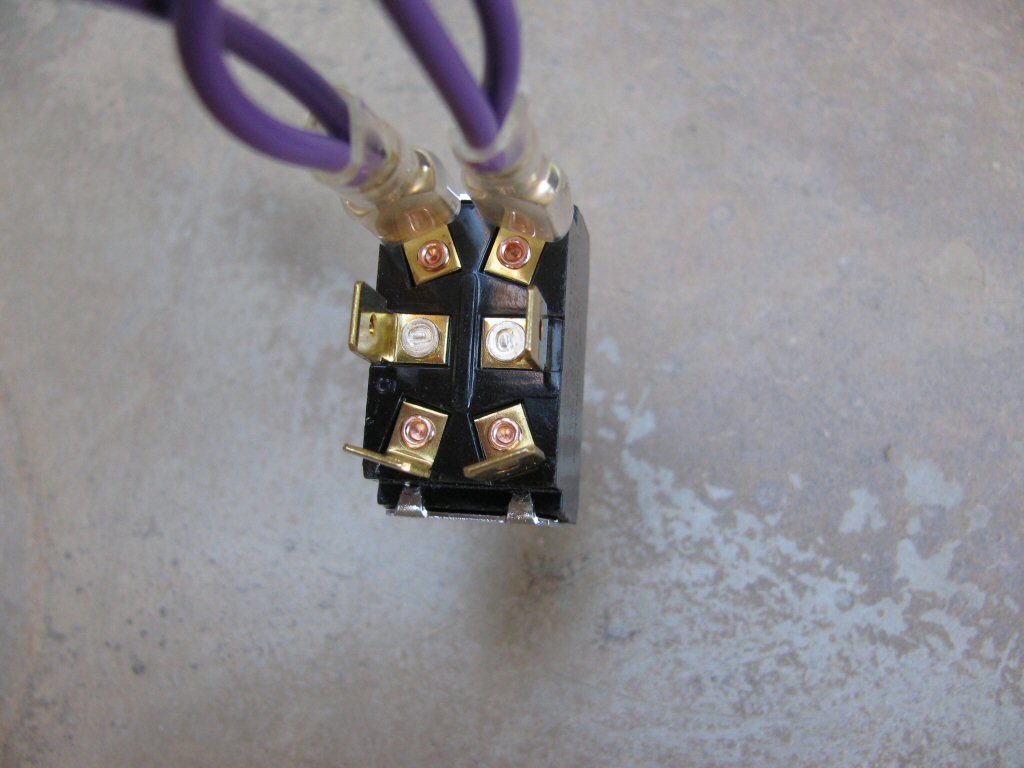

The two purple wires from the main harness are connected to the two terminals on one end of the toggle switch (it does not matter which end).
Photo courtesy of Gregory Bender.

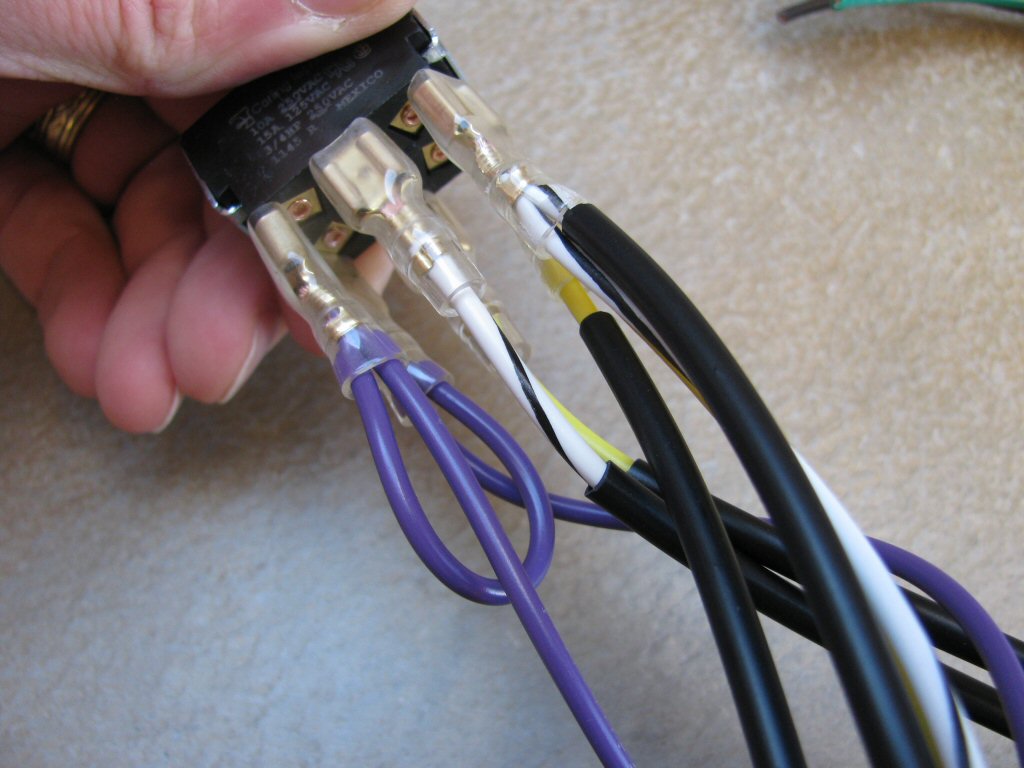

The white/black and yellow/black wires from the toggle switch to 3 connection female spade connectors sub-harness are connected to the middle terminals on the toggle switch.
Photo courtesy of Gregory Bender.

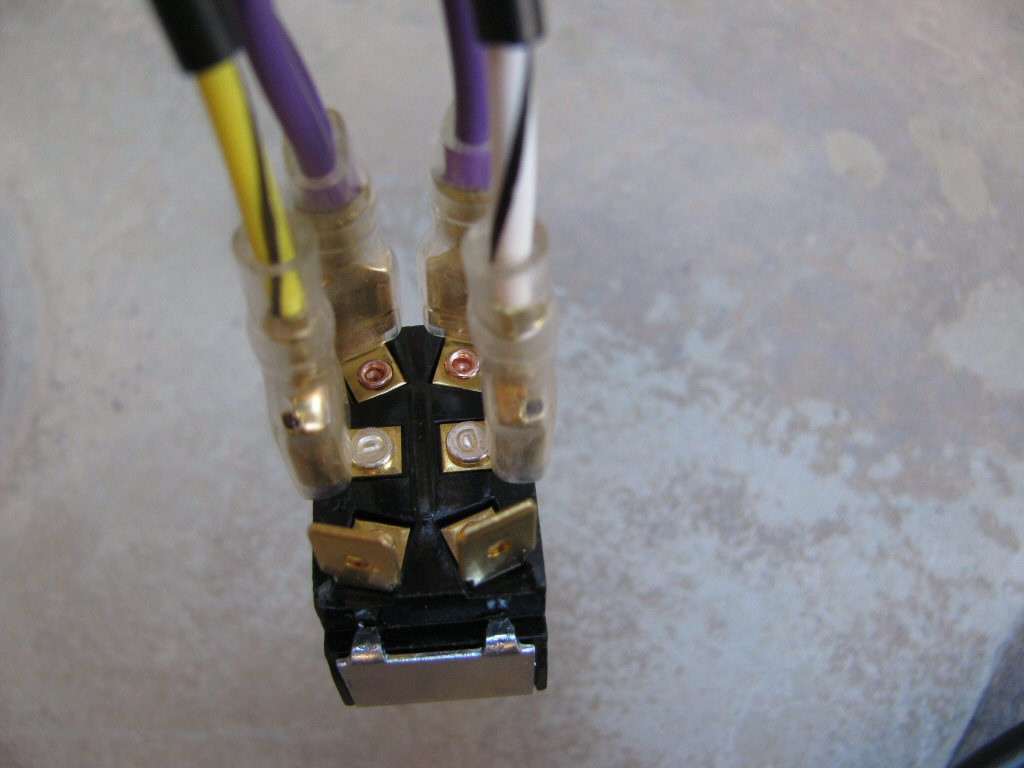

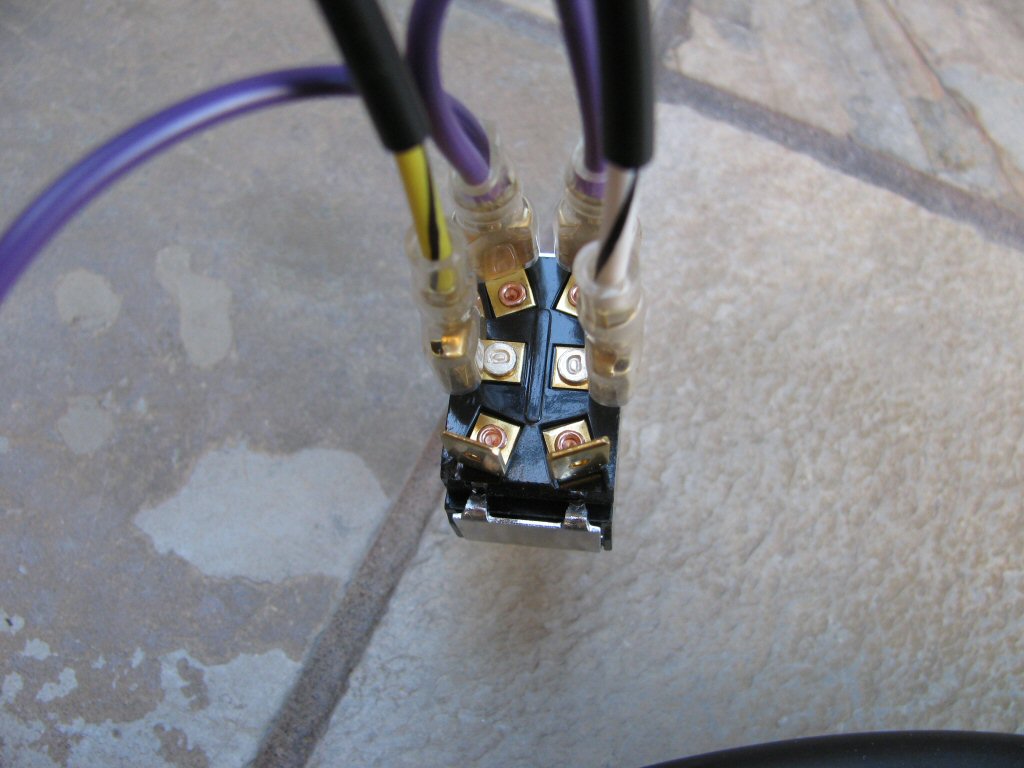

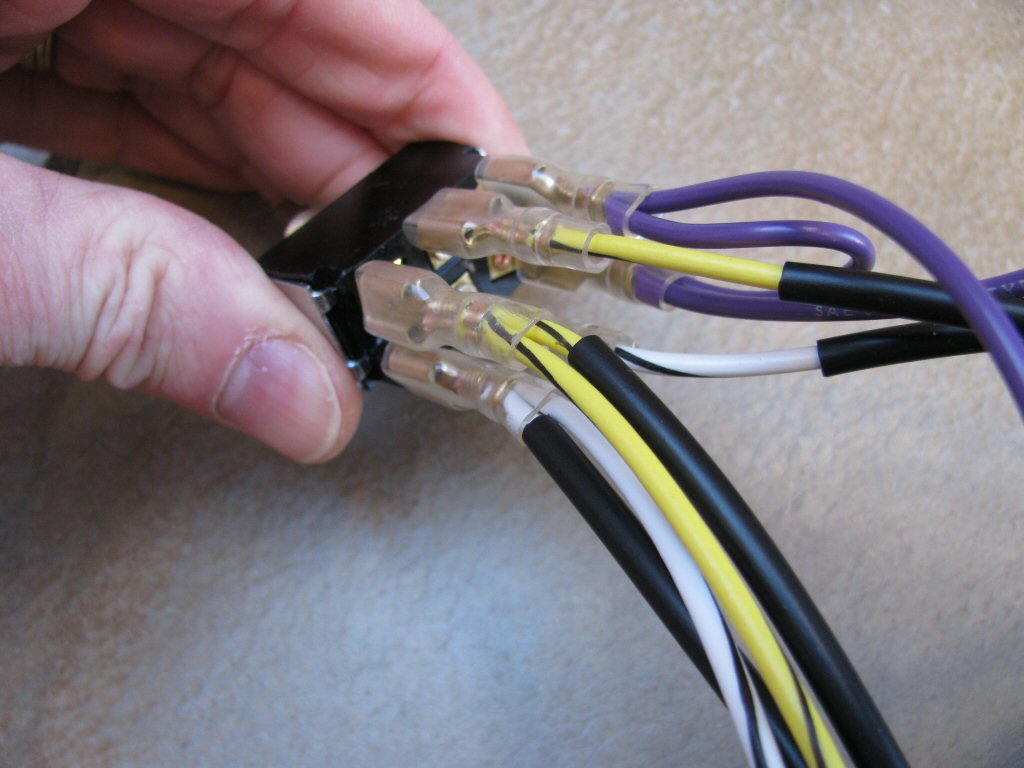

The white/black and yellow/black wires from the turn signal switch are connected to the two terminals on the opposite end of purple wires on toggle switch. Note how the yellow/black wires are on the same side.
Photo courtesy of Gregory Bender.
